Megaline
Glas-Faltwand Megaline
MEGALINE BI-FOLDING DOOR
For the highest of standards
With a maximum panel height of 4.50 m or a panel width of up to 1.50 m, the system can be used to create incredibly large glass surfaces – without compromising on convenience.

“Push to the limits” – THE NEW MARKET INNOVATION

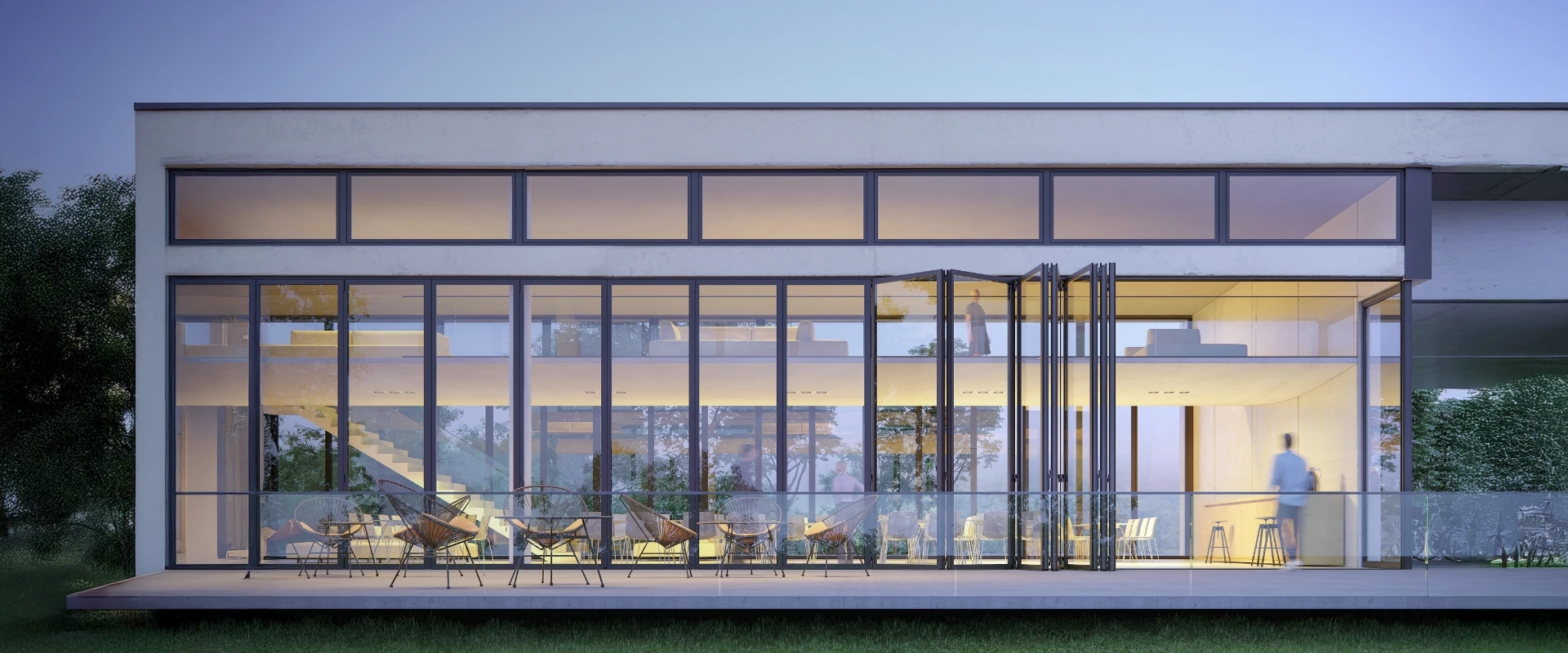

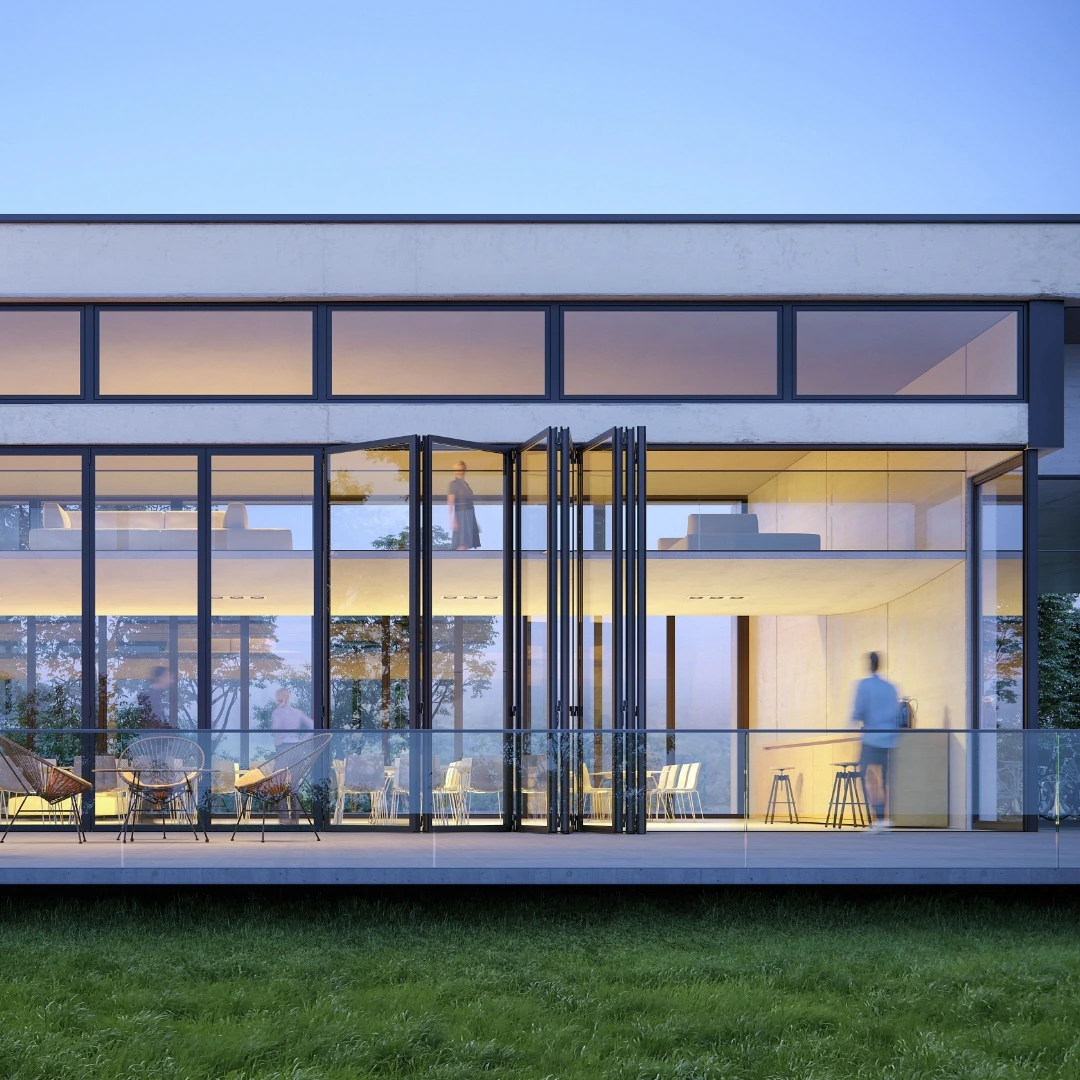

The Megaline bi-folding door with excellent thermal insulation is designed for use wherever extra-tall or wide panels are required. With a maximum panel height of 4.50 m (or a panel width of up to 1.50 m), it can be used to create incredibly large glass surfaces without compromising on ease of use or movement. The specially shaped stainless steel running tracks allow for the use of unguided carriages, and can be used with a selection of floor tracks, including accessible variants in accordance with DIN 18040. Depending on the height of the system, multiple sets of system hinges can be installed above one another. This guarantees a high degree of stability for the panels – which can weight up to 150 kg each – even at high wind loads. For extremely structurally demanding locations, additional structural profiles can also be added in the panel joint areas.

Engineering at a glance
Widerstandsfähigkeit bei Windlast
Widerstandsfähigkeit bei Windlast
Resistance
B4
Wärmedurchgangskoeffizient
Wärmedurchgangskoeffizient
Thermal transmission coefficient
Uw > 0.9 W/m²K
Luftdurchlässigkeit
Luftdurchlässigkeit
Air permeability
3
Dauerfunktion
Dauerfunktion
Durability
2
Schlagregendichtheit
Schlagregendichtheit
Water tightness
Up to 7A

System details designed to impress

Click on the individual points for more detail.

Technical details & downloads

Our materials

The Solarlux world of colours

When you choose a Solarlux bi-folding door, you opt for individuality. Solarlux standard colour options, which include around 30 RAL colours, offer all the colours of the rainbow in matt and gloss finishes, at no extra cost. This allows every bi-folding door to match its building’s interior and  exterior design. We use our own in-house coating plant – one of the most modern in Europe – for top surface quality.

RAL 1015
RAL 3011
RAL 5003
RAL 5008
RAL 5014
RAL 6005
RAL 6009
RAL 7004
RAL 7006
RAL 7015
RAL 7016
RAL 7021
RAL 7024
RAL 7035
RAL 7038
RAL 7039
RAL 7040
RAL 8017
RAL 8019
RAL 8022
RAL 8077
RAL 9001
RAL 9003
RAL 9004
RAL 9005
RAL 9006
RAL 9007
RAL 9010
RAL 9011
RAL 9016
