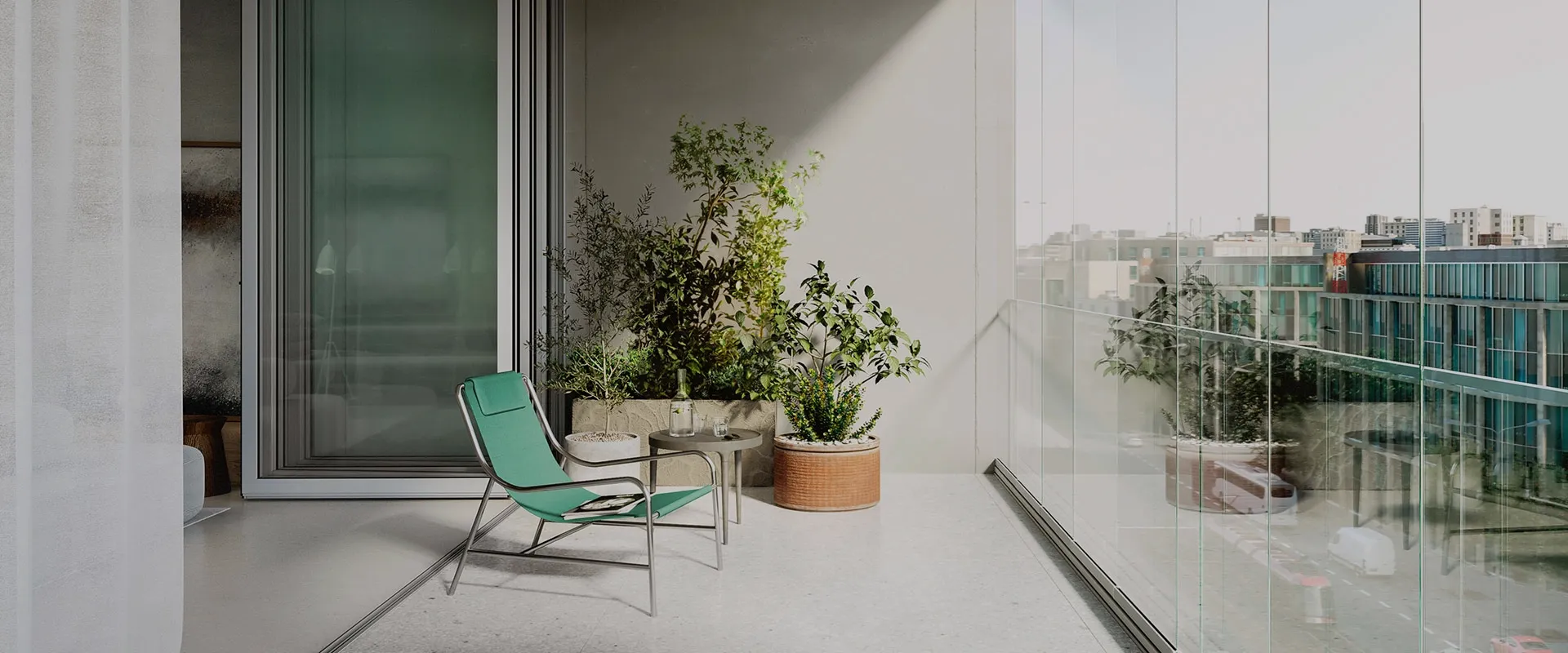

Schallschutz mit Solarlux Balkonverglasungen

Sound insulation glazing for balconies and windows

Efficient solutions for residential buildings with noise pollution

Get consultation now Sound insulation values

Sound insulation with versatile balcony glazing

Add extra value

The burden of industrial and traffic emissions confronts urban and project planners with the task of creating healthy living conditions. Balcony glazing and suspended balcony facades have decisive advantages: Both have a high-degree of pre-fabrication project safety and on top of this the transparent all-glass systems guarantee protection against noise, wind and weather, and can be opened and closed across their whole area. All Solarlux systems have been tested by independent institutions - if you’d like to see our latest certificates for our airborne sound insulation figures, just drop us a line – we’ll be happy to help!

Click here to find out more about Solarlux balcony glazing.

Kastenfenster für erhöhten Schallschutz im Wohnungsbau
Kastenfenster für erhöhten Schallschutz im Wohnungsbau

Soundproofing glazing for windows

The Soundline M box window from Solarlux is an innovative solution for increased sound insulation in urban living situations. It was specifically developed to meet the requirements of healthy living and designed for use on windows in new builds and renovations. The Soundline M system was designed and tested by SG-Bauakustik in collaboration with the engineering firm IfB Sorge, a specialist in building physics. With the attached module, increased sound insulation of up to 20 dB compared to the simple standard window can be achieved. In addition, the box window impresses with increased thermal insulation and an elegant, delicate appearance.

.DACFAFDEEAF a:hover { background: #4a4a49; color: #fff !important; }
Find out more about the Soundline M

Airborne sound insulation
Luftschalldämmung Verglasung geschlossen
Luftschalldämmung Verglasung geschlossen
Closed

Rw (C, Ctr) = 20 (0; -1) dB*

Luftschalldämmung Verglasung Öffnungsvariante Stufe 1
Luftschalldämmung Verglasung Öffnungsvariante Stufe 1
Right-hand element, stage 1, open approx. 50 mm

Rw (C, Ctr) = 19 (0; -1) dB*

*Values when installed

Labormesswerte
System Description Rw,P
SL 25 Slide and turn 22 dB
SL 25 add-on Slide and turn with plug-in seal 25 dB
SL 25 R Slide and turn with filigree frame 26 dB
SL 25 XXL Slide and turn 22 dB
SL 25 module Module facade with slide and turn 24 dB
SL 25 module add-on Slide-and-turn module facade with plug-in seal 26 dB
SL 25 R module Slide-and-turn module facade with filigree frame 28 dB



Schnitt SL Plus und Proline T
Schnitt SL Plus und Proline T

AIRBORNE SOUND INSULATION TEST REPORTS

Ventilation

Proline T Spaltenlüfter
Proline T Spaltenlüfter

Solarlux trickle ventilation

A built-in trickle ventilation, which can be fixed in two positions, allows for controlled ventilation.

  • Mechanical exhaust air from kitchens/bathrooms: Pressure difference 8-10 Pa
  • Backflow for living rooms and bedrooms: Replacement of a defined room volume of 51 to 81 m3/h at 4-10 Pa
  • Additional section through trickle ventilation:
    1st step 5 cm ¬ 0,11 m2
    2nd step 10 cm ¬ 0,22 m2

Your Consultants

Order now: The brochure on balconies and façades
All systems and technical details in one brochure. This gives you access to all project-specific information on our balcony and façade solutions for new builds and renovations.
